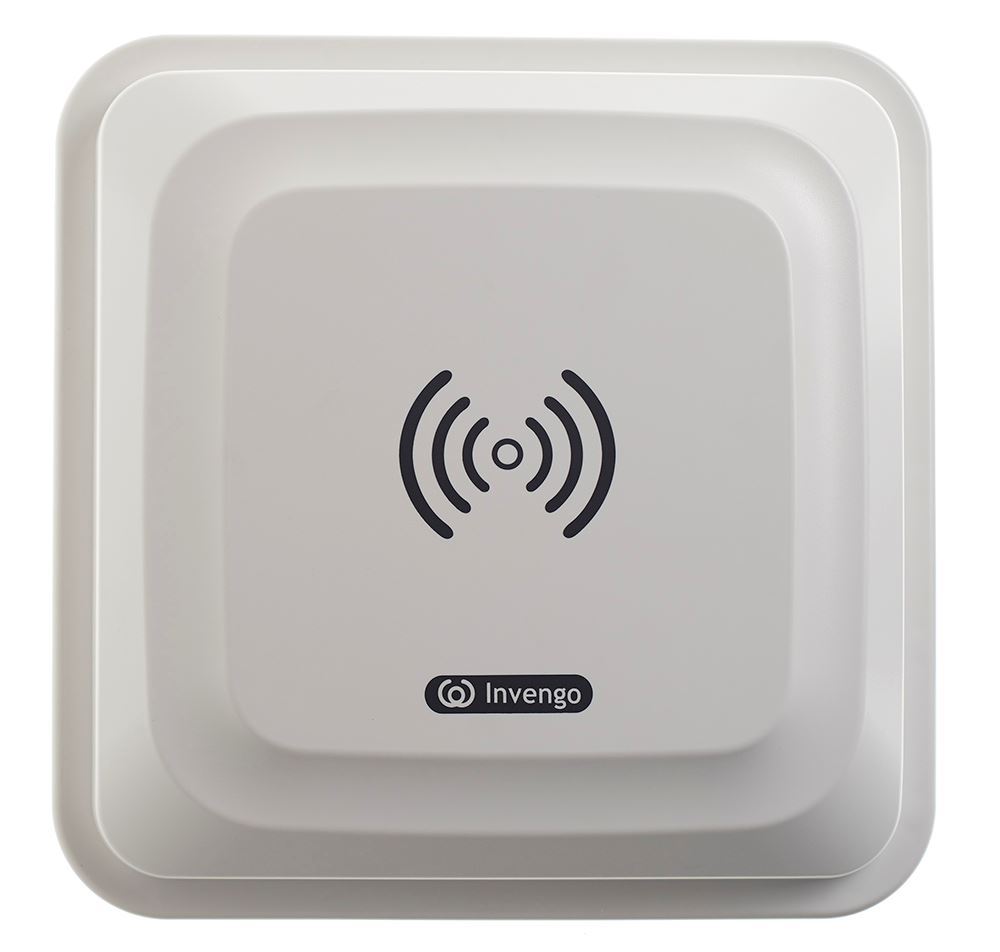

XC-RF850 Integrated UHF RFID Reader ( All In One )

Invengo’s XC-RF850 is a compact and fully integrated UHF RFID reader that delivers excellent performance at an incredible value. The reader has a sleek design and is easy to install. The XC-RF850 is Linux based and provides reliable reading with ease of programming and communication. With multiple connectivity options, it is ideally suited for vehicle, personnel, and asset tracking applications. The Invengo XC-RF850 is a low profile, integrated reader with a 7 dBic antenna and additional RF port that offer a great value/performance ROI, especially suited for outdoor portal type reading applications. It can come in two options, the integrated reader and antenna with an onboard GPIO or with a Wiegand output.
Free shipping
*

*

*
$995.00

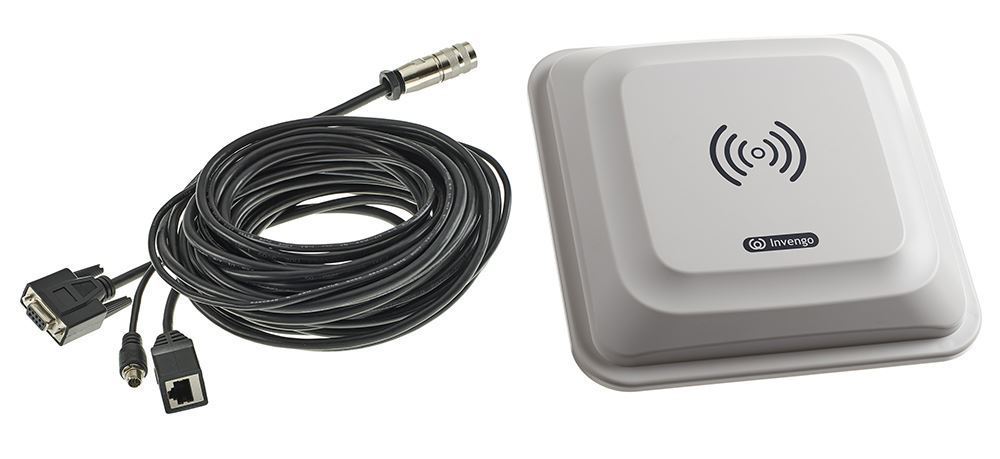

Includes


  • Universal Power Supply
  • AC Power Cord
  • Mounting Brackets
  • Ethernet Cable

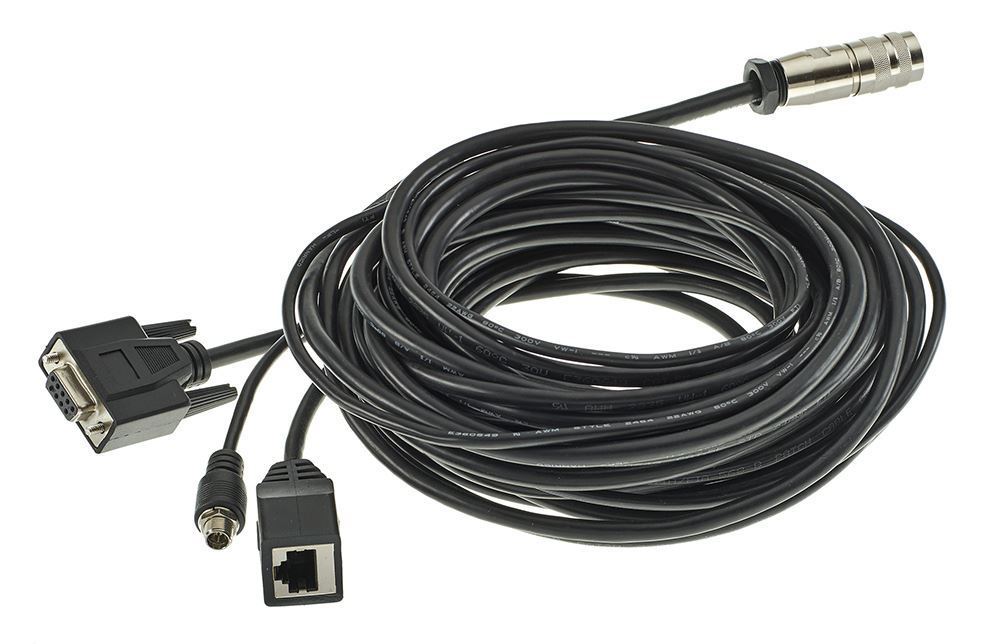

  • Serial Cable

Product Specification


Physical Characteristics
Dimensions 11.4in×11.4in×3.4in
290.8mm×290.8mm×86mm
Weight 4.4lb / 2kg
Case Material Metal, high temperature material
Power Supply
Adapter AC input 100-240 (50/60Hz)
DC output 24V/2.5A
Performance Characteristics
Standards Supported EPCglobal C1 Gen2
ISO 18000-6C
Frequency Range 902-928Mhz - FCC
865-868Mhz - EU/ETSI
Operating Mode Single / Dense Reader Mode or Trigger Mode
Output Power 9 dBm to 30 dBm configurable
Read Range 39.4 feet / 12 meters
Write Range 19.7 ft / 6 meters
Read Rate 140 times per second
Support Memory Size EPC : 496 Bits Maximum
TID : 112 Bits Maximum
User : 64K Bits Maximum
Integrated Antenna
Gain 7 dBi
Polarization Circular or Linear

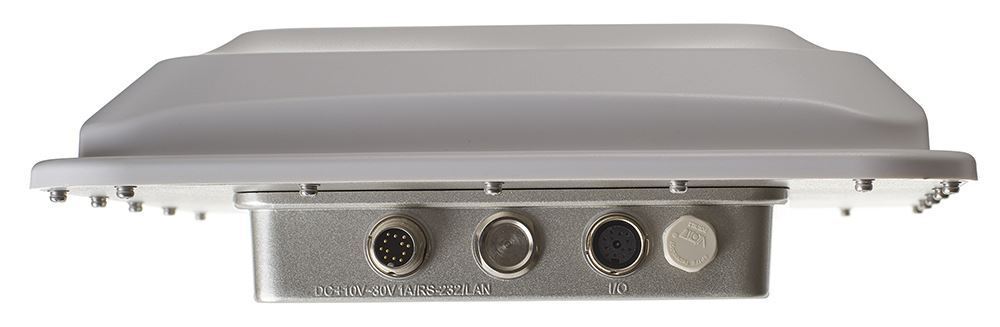

Hardware interface

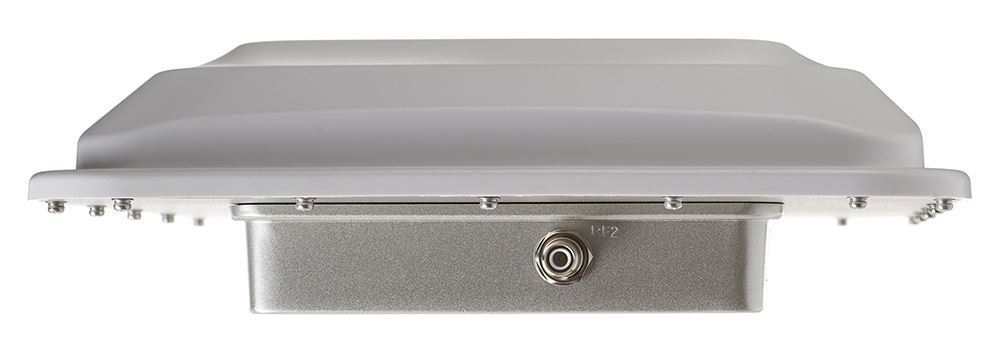

Antenna Port One external TNC-RP-type Reverse Polarity (male) port
GPIO Interface 2 inputs, optically isolated,
3 relay control outputs,
(or 2 Wiegend outputs, support Wiegand26/34/66 type )
Communication Interface RS-232, RS-485, Ethernet port
User Environment
Operating Temperature - 20°C to +70°C / -4°C to 158°C
Storage Temperature - 40°C to +70°C / -40°C to 158°C
Humidity 5% to 95% RH non-condensing
Environmental Sealing IP65
