Buy Invengo RFID

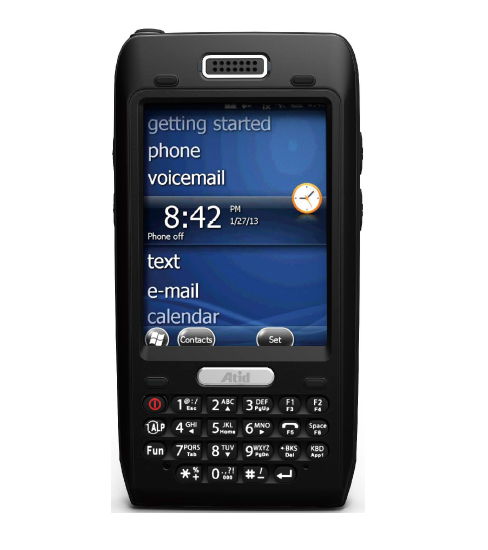

XC-AT870N-D Handheld RFID Reader


  • 2D Barcode Imager
  • Windows Embedded 6.5
  • Touch Screen
  • Bluetooth
  • 3G Cellular Modem
  • GPS
  • 3 Mega Pixel Camera, Auto Focus with Flash
  • Gun Handle / Pistol Grip
  • Ethernet Cradle / Docking Station / Charging Station
  • Power Supply and Cord
  • Battery
  • USB Data Sync Cable
  • Accessories
  • Warranty
  • Free shipping

    Product Specification

    CPU Marvell™ PXA320 806Mhz
    Memory RAM 512MB / ROM 512MB (1GB)
    Operating System Microsoft Windows Embedded 6.5
    Protocols EPC global Class 1 Gen 2 /ISO18000-6C
    Frequency 860Mhz ~ 960Mhz - FCC/ETSI/Japan Certified
    RF Output 1W EIRP
    Read Range 0M ~ 7M (According to Tag & Environment)
    Write Range 0M ~ 3M (According to Tag & Environment)
    Special Function Anti-Collision
    Engine 2D Imager
    User Interface
    Display 3.5” Industrial Grade Transflective
    LCD Color QVGA display
    Keypad 22 Keys (backlight)
    Audio Phone Receiver, Speaker, Ear Jack, Microphone
    Camera 3.0 Mega Pixel Auto Focus with Flash
    Expansion Slot 1 Micro SD Slot(SDHC), 1SIM Slot
    Notifications LED, Vibrator and Speaker
    Standard I/O Ports USB 1.1 Client / USB Host & Serial (RS-232) via gender cable or Cradle
    Network Connectivity
    WLAN 802.11 a/b/g
    Bluetooth Class II, v2.1 + SPP Only
    Cellular 3G Modem
    GPS Internal Antenna
    Dimensions 148 x 76 x 26 (Max 30.5) - mm
    Weight 250g (PDA only, without battery)
    Main Battery Lithium-Ion Polymer 3.7V 2,960mAh (Rechargeable) Up to 4,400mAh
    Backup Battery Lithium-Ion Polymer 3.7V 80mAh (Rechargeable)
    Power Supply Input AC110V ~ 240V / Output DC 5V 3A
    Operating Temperature -10°C ~ 60°C (-50°F ~ 140°F)
    Storage Temperature -20°C ~ 70°C (-68°F ~ 158°F)
    Humidity Range 5% ~ 95% RH
    IP Rating IP 65 - Dust and Waterproof
    Drop Test Multiple 1.5 m drops to concrete
    Vibration 4 to 400 Hz PSD (random) and 30G
    (3 axes)
    Anti Static ± 8kV air ESD, ± 6kV contact ESD
    Interface Ethernet, Serial and USB
    Power Supply Input AC110V ~ 240V / Output DC 5V 3A
    Battery Slot Second battery charging slot
    SDK/API C# / .NET SDK Available
    Sample Code Demo application with Source code
    Device 1 Year Limited Manufacturer's Warranty
    Screen 6 Month Limited Manufacturer's Warranty
    Battery 6 Month Limited Manufacturer's Warranty
