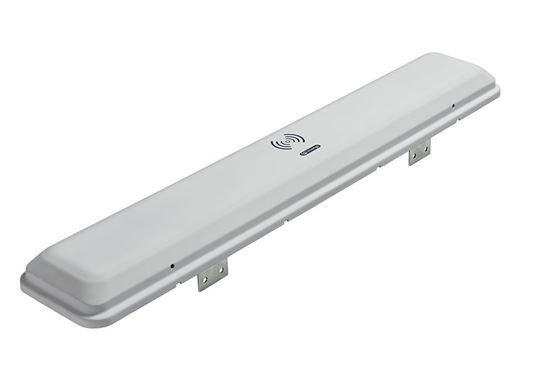

XC-AF35 Linear Rugged Antenna

Invengo’s XC-AF35 antenna offers high gain, ruggedness, shock and vibration resistance in a unique form factor. The XC-AF35 linear polarized antenna is ideal for transportation, logistics, asset tracking, access control, AVI (Automatic Vehicle Identification) and ETC (Electronic Toll Collection) applications.
Free shipping
Call for pricing

Product Specification

Performance Characteristics
Operating Frequency Global (840-928 Mhz)
Polarization Linear
Standing wave ratio (VSWR) ≤1.3:1
High Gain >13.6 dBi
Elevation Beamwidth 15°
Azimuth Beamwidth 60°
Input impedance 50Ω
Physical Characteristics
Dimensions 41.4 × 7.5 × 2.4 - inches
105 × 19 × 6 - cm
Weight 11.22 lbs / 5.1 kg
Material FRP & Aluminum
Connector N Type Female
Cable Not Included
IP Rating IP65
Operating Temperature -40°C to +80°C (-40°F to +185°F)
Storage Temperature -40°C to +80°C (-40°F to +185°F)
Humidity 5% to 95%
