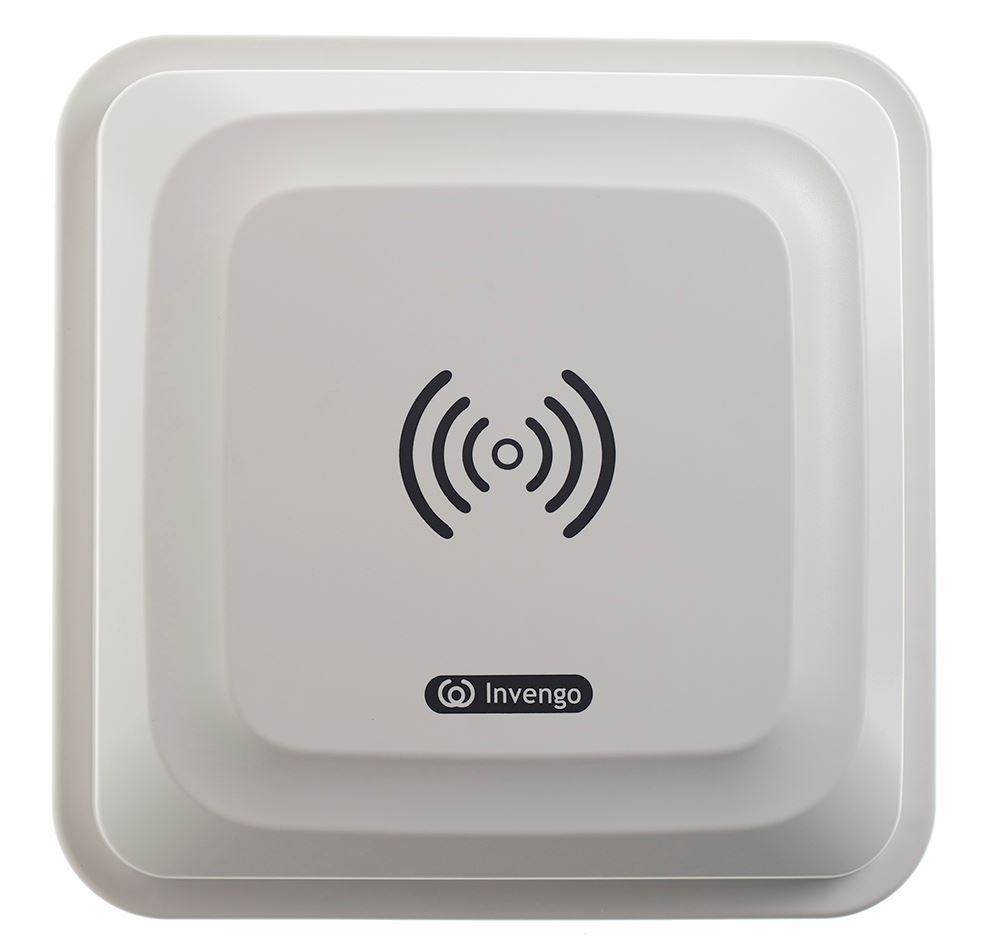

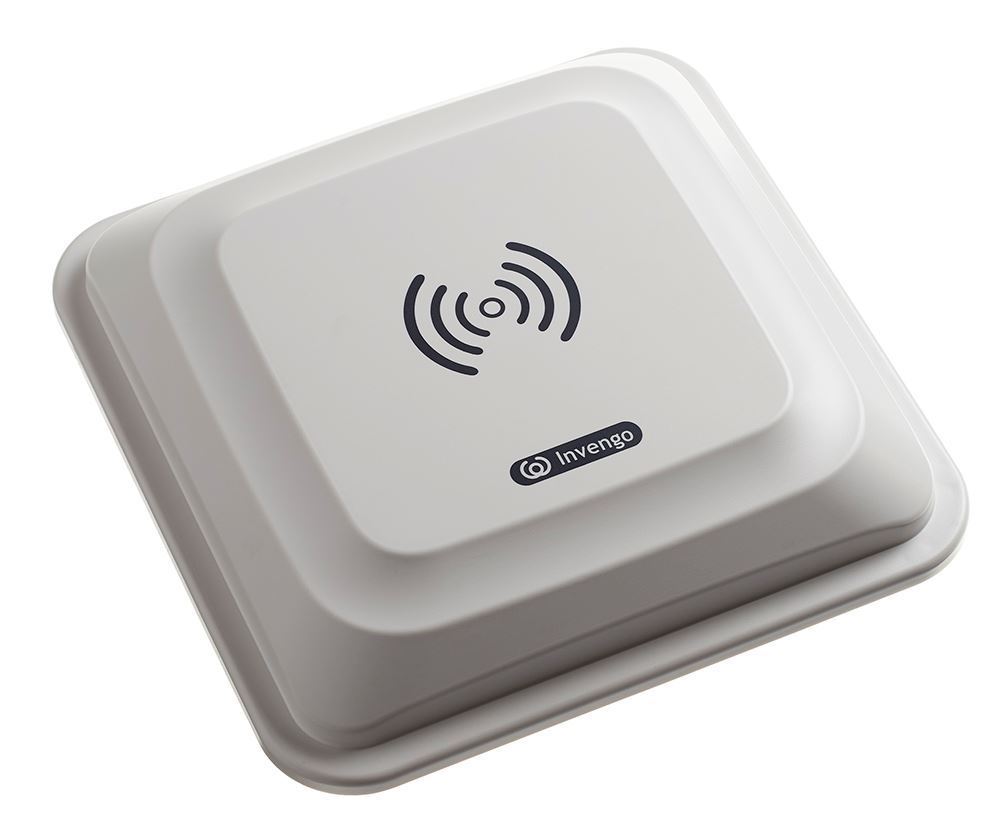

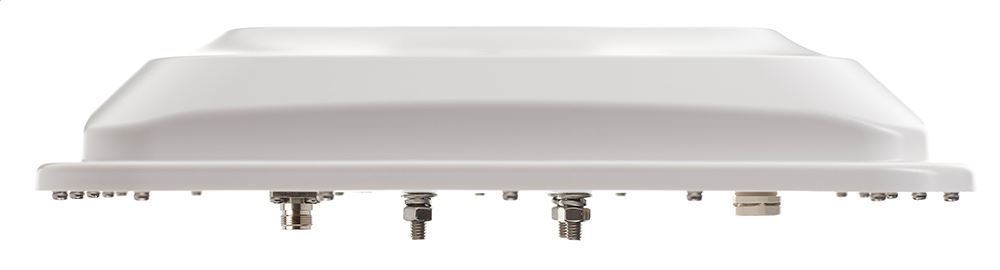

XC-AF11 Linear Polarized RFID Antenna

Invengo’s XC-AF11 RFID antenna offers high gain, ruggedness and excellent shock and vibration resistance in a unique design. The XC-AF11 linear polarized antenna is ideal for transportation, logistics, warehousing and asset tracking applications.
Free shipping
*
Call for pricing

Product Specification


Performance Characteristics
Operating Frequency Global (840-928 Mhz)
Polarization Linear
Standing wave ratio (VSWR) ≤1.4:1
Gain >7.15 dBi
Elevation Beamwidth 70°
Azimuth Beamwidth 60°
Input impedance 50Ω
Physical Characteristics
Dimensions 11.5 × 11.5 × 2.0 - inches
291 × 291 × 52 - millimeters
Weight 2 lbs / .91 kg
Material ASA & Aluminum
Connector N Type Female
Cable Not Included
Environmental
IP Rating IP65 and Ultraviolet resistant
Operating Temperature -40°C to +70°C (-40°F to +158°F)
Storage Temperature -40°C to +70°C (-40°F to +158°F)
Humidity 5% to 95%
